A step-by-step guide to selecting bulk bag unloader components
In the market to upgrade or extend your bulk bag unloading line? Not all bulk bag dischargers are created equal.
Need help selecting bulk bag unloading equipment?
Spiroflow Systems’ Andy Forrester walks us through some of the variations and customizations available in today’s bulk bag unloading market. From standalone, simple frame designs to high-volume semi-automated unloading systems with densifying vibration tables, bulk bagging systems can be custom built to meet a wide range of budget and discharging requirements.
Define Bulk Bag Unloading Requirements
Before starting to specify the bulk bag unloader type, options and customizations, first consider the material, process needs and bag requirements. Some of the most important considerations to ensure you end up with a safe and reliable discharging solution include:
- Material properties and flow characteristics
- Size and type of bags that will be handled
- How the bags will be handled
(Fork Truck or Hoist)
- Headroom/space constraints
- Weighing/batching requirements
- Downstream process requirements
- Bag removal and disposal
- Dust containment Hygienic requirements
Understand the Material Characteristics
There are a wide range of material characteristics that will impact the eventual design of a bulk bag unloader with some of the most critical being:
Material Type – Dust Containment
Some materials can be harmful to both operators and the environment so different levels of dust containment and operator protection can be a major consideration.
If materials are hazardous or corrosive additional seals can be incorporated between the bulk bag and discharger to minimize the risk of any dust escaping. Several different dust seal designs are available depending on the design of the discharger. A rubber membrane dust seal within the base of the unloader and peripheral double dust seal (ideal for single-trip bags that contain dusty materials) can be used to contain dust created as material flows from the bag.
In some cases a completely sealed “Glove Box” untie chamber could be the best solution, in other cases an untie chamber with dust collection and flow control devices may be sufficient. For an additional level of protection an “hygienic spout connection” can be incorporated to better seal the connection between the bulk bag and the downstream process. This is achieved by clamping the bag outlet spout to a custom spigot prior to initiating material flow. All this occurs within an enclosure that can be maintained at a negative pressure throughout critical phases of the discharge process.
Dust collectors can be integrated into the bulk bag discharger frame so that the dust drawn away from the emptying bag can be reintroduced to the system just downstream of the bulk bag outlet, thus minimizing product loss.
Explosion Proof/Hazardous Options
When discharging bulk bags of combustible material or when working in explosion-rated areas, various additional steps can be taken to protect operators and the equipment itself by using a discharger designed specifically for these circumstances. These options are available to meet any area classification and include features like, explosion proof motors, pneumatic vibrators, intrinsically safe sensors and static grounding and monitoring systems.
Material Flow Characteristics
Flowability will determine if flow aids are required and their type. Various designs are available ranging from different types of paddles or massagers to vibration, mechanical agitators or air ‘pads’ and ‘sweep” systems.
Some materials will agglomerate in a bulk bag to the extent that they will still not discharge using typical flow aids. In these cases, a bulk bag conditioner may be required to break the set of material and reduce the size of large lumps thereby allowing a bulk bag discharger to empty the bag. These units can be of a stand alone design or can also be incorporated into some discharger designs.
Knowing your Bag Specifications
If you are a high volume consumer of raw materials in FIBC’s you may be able to influence the specifications of the bulk bags that your products are supplied in, however, if your supplier only offers a particular style of bag it is critical to understand certain key parameters.
Determine if the base dimensions are within the typical range of 35″ x 35″ to 41″ x 41″. If the dimensions are outside of this range a smaller or larger bag support (dish) and a larger frame may also be required. In addition to the base dimensions the range of side seam heights of the bags to be handled also needs to be known as this will determine the height of the discharger structure and whether space saving options need to be considered.
There are two main styles of lifting loops, lay flat and cross corner and both are normally compatible with standard bag lifting frames but the details should always be confirmed to ensure a safe and reliable fit and if any customization is required.
Determine if the bags that will be used will incorporate a liner to prevent the ingress of foreign materials or moisture into the bulk bag or to prevent the egress of very fine powders through the fine stitching and weaving of the bulk bag.
The two primary types of liners used in FIBC’s are “From-fit” or “Loose Tubular”. If the bag will have a loose tubular liner there are different types of ‘liner tensioner’ that can be used to either hold the liner in place as the bag discharges or partially wind up the liner as material flows out of it to prevent the liner from exiting with the material and becoming entangled in downstream equipment.
Not all FIBC’s incorporate a discharge spout so knowing the details of the base construction of the bags that will be handled is critical to the design of the discharger.
Outlet spout: If the bag has an outlet spout what is the diameter and length? These details will be critical to ensure the correct operation of features like spout closure bars and hygienic spout connections.
Flat bottom: These types of bags, often referred to as single trip bags, require a purpose-built knife to cut the base as it is lowered into the discharger. Note it is critical safety feature that an operator is not required to reach under a suspended load to manually perform this function.
Conical bottom: Usually, a standard discharger can be used with this type of bag, but care must be taken to ensure that the ties that secure the cone during shipping can be safely released once the bag is lowered into the discharger.
Bulk Bag Handling Requirements
Determine if the bag will be placed into the discharger using a forklift or if the bag will be moved to the discharger where a motorized hoist and trolley will be used to load the bag. Depending on the situation, this will determine what type of discharger frame is required.
The filled weight of the bulk bags must be assessed to confirm the bulk bag discharger frame design will safely handle the upper limit. It will also define the capacity of the hoist and trolley required if a monorail style discharger is being considered.
Determining method of downstream Material Transfer
How will the material exiting the bag be handled? There are two common types of feeds for material exiting: gravity feeds and conveyor feeds.
Gravity feed: material falls from the bulk bag discharger into a vessel or container.
Conveyor feed: a mechanical or pneumatic conveyor is fed by the discharger. Many conveyors are not suitable for being flood fed directly from the discharger so the design will need to allow for a metering device such as a rotary airlock valve or similar to be installed between the discharger and conveyor.
Define Weight Batching or Dosing Requirements
Metering the material from a bulk bag to provide an accurately weighed amount of material is often a requirement. This can be done in two ways: Loss-in-weight (LIW) or Gain-In-Weight (GIW).
Loss-in-weight: LIW requires that the discharger or a portion of the discharger along with the metering/feeding device are weighed and a control system is used to monitor the loss in weight of the system as material is fed to the next step in the process.
Gain-in-weight: GIW is used when the vessel or container that is being fed by the bulk bag system is on load cells. The control system monitors the gain in weight of the weighted vessel to control the feed device.
Volumetric type feed devices such as flexible screw conveyors, airlock, cable conveyors, etc. can be used to move material from the bulk bag discharger to the next stage of the process. Almost any type of conveyor can be integrated with a bulk bag discharger.
Customize Bulk Bag Unloading Station
Many additional options can be added to a bulk bag discharger design.
For manufacturers who need to move their unloader to different locations, this discharger can be locked in place while in use and then wheeled to another location in the plant easily.
It’s also important to understand any hygienic requirements, including the cleaning process of the discharger. Additional options can be added to the bulk bag unloader such as spray balls, drain ports, etc. in order to facilitate cleaning in place. Also, surface finishes, frame design, and materials of construction can all be specified to meet additional hygienic requirements.
Dish Cover Assembly
In order to prevent foreign material from entering the discharger and possibly contaminating the internal parts that come in contact with the material, a pneumatically operated cover can be used to seal the bulk bag discharger dish/tray/hopper when not in use.
Integral Bag Dump Station
For small (typically 50 lb) bags that also need to be emptied into a bulk bag discharger a second bag dump enclosure with safety grid can be incorporated under the standard untie chamber or an oversized untie chamber incorporating these features can be added.
Operator Safety Considerations
The design of the discharger must allow the operator to easily and safely untie/retie an outlet spouted bag, so dusting (see above) is often a critical safety consideration. Additionally, removing a partially emptied bulk bag from the discharger is often a requirement. In order to accomplish this task, a device must be included in the discharger design to close off the outlet spout so that it can be retied, allowing the partially emptied bag to be removed. It is clearly imperative that any such devices are safety interlocked to avoid inadvertent operation when the operator is working on a bag spout.
Bag Removal & Disposal
The potential for dusting must also be considered when removing the bag from the discharger. Every dry bulk material should be assessed for their risks and tendency to create dust. There are different methods of evacuating the dust laden air that remains in an empty bulk bag prior to removal and dust free bag compacting and sealing stations can be added as required in these circumstances.
Testing your selected design
Following the steps above will help you to determine the right style or design of Bulk Bag Discharger for your specific process needs and what customizable options you should consider in order to maximize the safety and efficiency of your system. The final step in the process is to work with a reputable manufacturer who offers a broad range of designs and options that will meet your needs and who has the ability to test the recommended solution in order to confirm the most appropriate design has been reached.

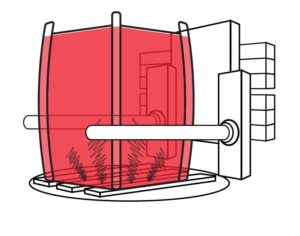

Some examples of typical discharger designs available from Spiroflow Systems include the following:
Simple Support Frame
Simple support frames are suitable for applications in which the product is discharged without the need for flow aids, is dust-free, does not need regulation of the flow of materials at any point in the process, and has continuous operator supervision in place.

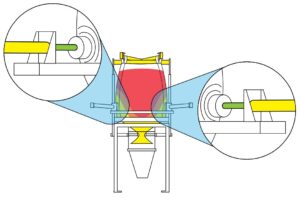

Discharge by Volume
This universal type of Bulk Bag Unloader provides controllable discharge rates by volume, and is typically used for applications with poor flowing materials.
Discharge by Weight
Loss-in-weight bulk bag unloaders offer total control over the amount of product that is successfully dispensed from the bag, and can be varied for individually-selected batch amounts, or fully-integrated with process controls for continuous batch production.
This Loss-in-Weight model has a specialized batch controller that offers both bulk and trickle feed options for optimal dispensing of materials. It also has a “Pause-Resume” feature that automatically pauses the discharging operation when a bulk bag is found to be empty, and retains in memory the amount that has been dispensed.
Discharge with Height Restrictions
Low Loader models, incorporating a split upper and lower frame, are ideal for areas in which there is restricted headroom that typically causes issues for bag handling operations. By pairing this type of Bulk Bag Discharger with a suitable conveyor system, ingredients can be fed from the bag by volume or by weight, and can be moved into other mixing or processing equipment proportionately.
In addition to handling bulk bags, the height of the access door can be designed to receive small bags as well (typically around 50 lbs or less), which is beneficial to processors who continue to receive minor ingredients in smaller bags. Processors with batching operations can also choose to have several upper frames in use with one discharge station in order to significantly speed up bag change over time.
Discharge without the Use of Forklift Assistance
An Integral Hoist model offers a fully self-contained environment for dust-free and controllable bulk bag emptying. This piece of equipment has an integral “I” beam and hoist that loads bags into the discharger, saving space and the need for forklift assistance.
Discharge of Rigid Bins, Octabins, or Sacks/Bulk Bags
This Multi-container discharger model is a versatile option that allows processors to discharge materials from a variety of container types, such as rigid IBCs, octabins, and bulk bags and sacks.
Suitable for batching operations that require multiple ingredients from several different sources or methods of supply.
Discharge Single Trip Bags
Single trip bulk bags are commonly used within plant environments that process low-value or hazardous materials, and therefore require a dust-free and controllable emptying method.
These disposable bags have no bottom spout, and require a static or pneumatic knife to open the bag during the unloading process.
Discharge for High Containment Applications
For high containment bulk bag discharging applications such as pharmaceutical discharging, there are options that are specifically created with hygienic design, dust-containment, and cross-contamination considerations in mind. These FIBC dischargers are often used in dairy and pharmaceutical applications, where spillage and contamination should be avoided at all costs.
A step-by-step guide to selecting bulk bag filler components
In the market to upgrade or extend your bulk bag filling line? Not all FIBC bulk bag fillers are created equal.
Need help selecting bulk bag filling equipment?
Spiroflow Systems’ Andy Forrester walks us through some of the variations and customizations available in today’s bulk bag filling market. From standalone, simple frame designs to high-volume semi-automated filling systems with densifying vibration tables, bulk bagging systems can be custom built to meet a wide range of budget and filling requirements.
Narrow Selection: Bulk Bag Filler Frame or Station
First, narrow the equipment selection to one of the following: a simple, stand-alone bulk bag filler frame or a more sophisticated filling system.
SIMPLE FILLING FRAMES
Low Cost, Volumetric Filling
Bulk bag filling frames are ideal for very low-rate applications (10 or fewer bulk bags per hour) that do not require weighing or densification. This economical choice should only be considered in cases where an operator will continuously monitor the fill progress, the material de-aerates well, and volumetric fillingis acceptable.
Frames typically consist of a base plate with two vertical legs on which the horizontal loop support arms can be vertically adjusted. Mounted above the two loop arms is a frame that supports the filling nozzle, if included. The two sliding sections should come with locking pins for positive location. Filled bags are removed by deflating the inflatable collar and pulling the neck manually from the filling spout, lifting the pallet and filled bag a few inches with a forklift or pallet jack and backing the bag out of the filler.
BAG FILLING LINES OR SYSTEMS
Medium to High Volume Filling
Bulk bag filling stations are used for medium to high volume applications where filling by weight is a requirement or a higher output is desired. Filled bags can be removed with a forklift or semi-automatically via a motorized conveyor system. Unlike basic frames, a complete filling station may include a load cell weighing system (either hang weighing or base mounted) and can also include vibration capabilities for product densification (deaeration). Accurate weighing reduces the amount of overfill thereby minimizing the amount of product that is given away for free.
Bulk bag stations include the supporting frame or structure, bag support arms, fill head, dust extraction system, weighing system (load cells or platform scale) vibration table and, in the case of a semi-automatic filling station, a bag removal system. There are also many customizations available on bulk bag filling stations to meet specific application requirements such as a range of automated inbound or outbound conveyor systems
to allow for automatic pallet feeding, shrink wrapping or bag labeling.
Define Bulk Bag Filling Requirements
Before starting to specify the filler type, options, and customizations, first consider the material, process needs and bag requirements.
A good indication of whether a material will benefit from densification during the bulk bag filling process is the difference between its tamped and un-tamped bulk density. Understanding the bulk density will help to determine whether and what type of densification system may be needed in the filling process. A difference between the tamped and un-tamped densities of 10% or more can indicate that maximum densification is required to achieve a safe and stable bulk bag. The bulk density of the product in the filled bag should be as near as possible to its tamped bulk density.
How the material behaves+w/ hen conveyed or filled will determine the best type of feed system (eg. gravity, 1-2 lbs vibratory, metered) and whether additional flow aides are necessary to ensure consistent flow of material into the bag. Consistent flow of material into the bag can be critical in achieving consistent weighing accuracy from bag to bag. Very cohesive products may require densification despite a relatively low difference between tamped and un-tamped bulk densities. Materials that are easily fluidized, like some types of silica and titanium dioxide, may also require maximum densification.
The process material temperature and ambient facility temperature will all impact how a bulk powder material behaves as it is processed, and thus, the final condition of the filled bag. Many bulk solid materials behave differently when their temperature is elevated as it comes off the process. For example, hot material may exhibit a much larger difference between its tamped and un-tamped bulk densities as compared to its cooled characteristics. In that case, maximum densification may be required to achieve the filled bag target weight whereas if it was filled at ambient temperature, minimum or no densification may be all that is required. Keep this in mind when assessing a bulk bag filling station and particularly if the equipment manufacturer will perform testing prior to purchase. Accurately simulating the application may require testing on site as the product comes off the process at its elevated temperature.
Fragile or friable products can be easily degraded during bulk bag filling without equipment customization. To prevent degradation, the bottom of the bag can be raised up to the filling head to reduce the drop height and then be gradually lowered as the bag fills.
Perishable dry bulk products (eg. food and ingredients such as nuts) may require a bulk bag filling solution that extends product life in the filled bag. In the filling process, bulk bags are typically first inflated with air to expand the bag and prepare it for filling. However, bacteria feeds on oxygen, and trapped oxygen in the bulk bag can cause the product to degrade faster. Perishable products can benefit from a nitrogen purging solution – which fills the bag with nitrogen, eliminating residual oxygen – thus extending the bagged product’s life during transportation and storage.
2b. BAG TYPE
Bag height and volume requirements are typically the first consideration when selecting a bag type. Bulk bags are specified using their empty dimensions which can vary greatly. Typically, base seam dimensions are no larger than 41” to ensure that filled bags can be loaded two across in a typical trailer or shipping container. Bag heights can be as tall as 90”+ for very low bulk density materials. When selecting bag dimensions, the final amount of product needed in the bag, pallet size and method of shipping must be evaluated and considered.
Style & Shape
Both the bag manufacturer and equipment manufacturer should be consulted to de- termine the bag style. The bag will need to be optimized for safe storage and transport. Filled FIBCs will round out in their mid-section to some degree. Circular woven bags with no internal baffles will round out the most. U panel or four panel bags will round out to a lesser degree. Bags with internal baffles sewn across each of the four corners and extend- ing from top to bottom round out the least and are typically used when shipping in sea containers to maximize the shipping weight. The amount of round out vs. the width of the shipping trailer/container should direct the method of bag construction.
There are two main styles of FIBC lifting loops: lay flat and cross corner.
Lay flat loops: Lay flat loops are found in U style and 4 panel bulk bags that feature stitched, vertical seams at the corners of the bag. The loop is stitched into the vertical seam and then doubled back on itself and stitched again. This style of loop ensures the forces are maintained vertically down the multi-stitched vertical seams when lifted by its loops for stability and strength.
Cross-Corner loops: Typically found in circular woven bags where the sides of the bag are a single cylinder of fabric and therefore there are no vertical seams in the bag. Lay flat loops cannot be used with this style of bag. Cross corner loops are also used, with any style bag, if the bag is lifted by inserting forklift tines into the loops. The cross corner configuration helps to keep the loops extended so that the tines can be easily driven through the loops. In some cases when only the forklift operator is available, inserts can be sewn into the cross corner loops to extend them into a fully open position making it even easier to drive the tines through them.
Bulk bag liners are used to prevent the ingress of foreign materials or moisture into a bulk bag and/or prevent the egress of very fine powders through the stitch- ing and weave of the bulk bag. They may be a requirement to prevent leakage or moisture ingress. Unlined bags with a coating extruded on the interior of panels of the bag can also be effective in some situations. Liners for special applications, such as transportation and storage of edible materials, milk powders, etc. or liners requiring conductive properties for use with substances that may create danger via electrostatic discharge, may be requested from the bulk bag manufacturer.
Liner types include:
Form fit: The liner is constructed with sides, top and bottom that mimic the bulk bag. They can be loose inside the bulk bag or glued or stitched into the bag. Typi- cally, nothing must be done with the filling equipment to handle this type of liner.
Loose tubular: The liner is a cylinder of polyethylene (typically) that must be inflated prior to filling so that it takes the shape of the bulk bag. The bulk bag filler filling spout must be able to allow the liner to slip somewhat as material enters the bag/liner to allow the loose liner to conform exactly with the bulk bag as it is filled.
The bagging rate, how many bags must be filled per hour, the target weight of material in the bag and amount of densification required to produce a safe and stable package must all be taken into account to select an appropriate bulk bag filling system and the upstream system that feeds material to the filler.
As the bagging rate increases, options such as automatic loop release, retractable loop hooks and automatic bag removal should be considered. Applications with bagging rates over 20 bags per hour should be carefully assessed to determine the proper densification method needed to produce safe and stable filled bags. As the bagging rate exceeds 20 bags/hr, pre-weighing the material in a hopper above the filler can be considered. Pre-weighing the ‘shot’ of material while a bag is being densified and removed from the system and the next bag is rigged, significantly increases the bagging rate. Pre-weigh systems are capable of filling 40+ bulk bags per hour with a single bulk bag filler.
Weighing accuracy is essential to prevent overfilling bags and unnecessary product ‘giveaway’ and also potential penalties associated with selling underweight bags. Depending on the bagging rate, material characteristics, upstream system design and the weighing system on the bulk bag filler can result in weighing accuracy of +/- 1 lb. Most systems are capable of achieving +/- 2 lb (1 Kg) weighing accuracy. Weighing accuracy is critically dependent on how well suited the metering device is to the application. A simple, two position gate valve may provide adequate accuracy when filling bulk bags with reasonably low bulk density product at a slow rate. On the other hand, high bagging rate applications may require a different metering device, a second dribble feed device or a surge hopper with a fast-acting gate valve for accurate filling.
Consider how often your bulk bag filling equipment will need to be on and running to meet productivity requirements. For extremely demanding applications and operating environments, filling systems should be designed to ensure extended duty cycles can be met without damaging equipment or introducing safety risks to operators.
Properly filled bulk bags are more stable and safer to stack two high. Stacking saves space and storage costs. Specialized bulk bag systems can even stack bags two high in the filler. This reduces the amount
of forklift handling and time required to construct a two-high stack. Safety note: bulk bags should never be stacked without the input of the bulk bag and the bulk bag equipment manufacturers. Maximum densification is required when stacking any bulk bag. Testing prior to system implementation is critical to ensure safe operation.
Select Bulk Bag Filling Station Components
Based on your requirements definition, start to select each component of your bulk bag filling station.

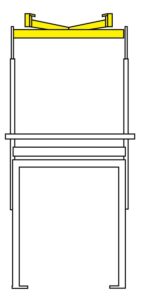

3a. SUPPORT FRAME
2 Post, C frame Design
Two vertical tubes attached to a steel base frame provides a stable structure and easy access to three sides of the machine. Horizontal loop support arms can be vertically adjusted. A frame mounted above the two loop arms supports the filling nozzle. When filling by weight the lower steel frame can be mounted on four load cells or a platform scale.
Single Post, C frame Design
A single steel post main support structure can provide unmatched access to bag spout and hanging loops. The bag hanger arms & fill head assembly are attached to the mast and can incorporate a base mounted scale or hang weigh system.
For low headroom. Facilities with limited headroom need a low loading bulk bag filler to minimize the filler’s height and/or to allow removal of the bag with a pallet jack.
Automatic Loop Release
For semi-automatic bag removal using roller conveyors to move the filled bag from the bulk bag filler. When the target weight has been reached, the bag hooks simultaneously open to release the bag loops from the filler.
The bulk bag is suspended in the air via its loops during filling and is periodically lowered onto a vibrating cone table for densification. Hang filling and cone table densification results in more stable bulk bags and typically increases the amount of weight that can be filled into a given size bag or allows the use of a smaller bag to contain the target weight.
Bottom support – flat plate
The bulk bag sits directly on the pallet, which rests on the flat base plate attached to the frame of the bulk bag filler.
Bottom support – roller conveyor
The bulk bag sits on the pallet, which rests on the rollers of a roller conveyor that is attached to the base frame of the filler. This allows filled bags to be semi-automatically removed from the filler.
3c. FILLING NOZZLE/FILLHEAD
For improved ergonomics. A tilting fillhead tilts the fillhead towards the operator, reducing the reach required to pull the bulk bag inlet spout over the fill head.
Twin Tube/Dust Extraction
For dust containment during filling. Displaced air is extracted from the bulk bag via a dust collection system as it is filled via a dust vent in the outer tube of the fill head.
Filling Head Spinner
For optimal product dispersion during filling. A spinner head can be used to disperse product into the baffle to ensure the corners of the bag are properly filled. Select this option where vibration alone cannot remove the material’s angle of repose, which prevents the top corners from filling completely.
Bag Liner Inflation System
For optimally filled bags. A fan or compressed air venturi inflates the bag with air (or nitrogen) before it is filled, eliminating fabric creases and ensuring maximum fill capacity.
3d. WEIGHING / SCALE TYPE
Entire bulk bag filler and product in the bag are weighed during filling.
Bulk bag fillers that feature hang filling use a hang weigh system. Only the weigh frame, fill head, hanger arms and bulk bag are weighed during filling when the bag is suspended from its loops. This arrange- ment significantly reduces the dead load seen by the load cells which results in a higher resolution weighing system for more accurate, consistent weighing.
3e. VIBRATION COMPACTION/DEAERATION
Vibration of the material during filling densifies the product in the bag for a more stable, safe bag.
Cone table – CTE
Vibration energy is injected directly into the material in the bag by periodically lower- ing the bag onto a vibrating cone table. This method provides maximum densification which is particularly useful when filling difficult to deaerate materials and, because cone table densification densifies any material more quickly than through-pallet fill- ers, when the bag filling rate must be maximized.
Through Pallet – C1-2
Vibration energy is applied through the pallet into the bag.
Finger Style – C2-2
Vibrating bars or fingers are raised through the in-filler roller conveyor to allow for through pallet densification of bags sitting on a pallet.
Customize Bulk Bag Filling Station w/ Additional Options
Explosion Proof (Static Monitoring/Grounding)For explosion risk applications. If the area poses an explosion risk, static dissipative or groundable bags may be needed together with a suitable static monitoring system.
For manufacturers that need to move their filler to different fill locations. Wheeled, mobile base units are available utilizing 2 rigid casters, 2 swivel lockable caster & pneumatic cylinders to isolate the load cells during movement.
Control Systems Integration
Automatic gain-in-weight filler – Bag is weighed as it is filled until it reaches the target weight. The system can be programmed to automatically fill the bag to the target while densifying the bag according to a pre-programmed sequence.
Weight display – For manual filling to a target weight. The operator initiates filling and monitors the weight display. When the display approaches the target weight the operator manually stops the filling process.
Pre-weigh – For achieving maximum fill rates while maintaining accuracy. Material is measured and weighed in a dedicated hopper before being quickly transferred to the bag.
To extend the storage life of perishable materials. The bulk bag is filled with nitrogen, purging the bag of oxygen, before and during filling. Bacteria feed on oxygen, so by removing it, products will last longer during storage and transportation.
To extend storage life. Combined with nitrogen purging, heat-sealing can significantly extend stored product life.
Automatic Height Adjustment
An option that allows the operator to quickly adjust the height between filling cycles to accommodate different bag sizes.
Stainless steel product contact surfaces, food grade finishes and bag inflation with HEPA filters may be required to meet Good Manufacturing Practices in the food and beverage industry.
The bulk bag filler design, bag height and the integration of roller conveyors to automatically remove filled bags may require the operator to be elevated above floor level to allow rigging of the bulk bag.
Test, Test, Test
Before purchasing bulk bag filling equipment, it is recommended to first run the material on the equipment in the bulk bag equipment manufacturer’s test lab. Replicating the filling conditions allows analysis of specific characteristics to avoid production challenges later.
