Bin Activators
System OVerview
Do you need to effectively control the discharge of material from bulk containers? Bin activators and vibratory feeders can control material flow rates and minimize bridging.
When you need to control material flow rates and minimize bridging consider the Spiroflow Bin Activator. The vibrating feeder blades are fully adjustable for accurate and repeatable control of solids flow. Energy is imparted directly into the solids by vibrating blades to maintain flow.

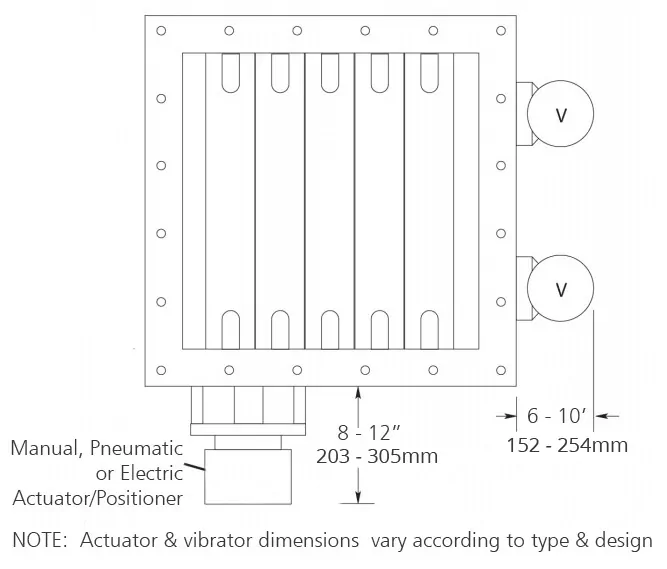

The close tolerance blades provide positive shut-off of solids flow. Spiroflow bin activators are offered in 12″/ 305mm & 24″/ 610mm sizes as well as custom sizes.
Features
- Controls flow of material
- Promotes flow of difficult material
- Vibrating blades minimize bridging
- Effective shut-off
- Manual, pneumatic or electric controls
- Offered in carbon steel or stainless steel
HOW IT WORKS & BENEFITS
Versatility of installation and the ability to deal with the widest range of material particle sizes, bulk densities, and flow properties puts Spiroflow at the leading edge of flexible screw conveyor technology. Flexible screw conveyors, or auger conveyors, are often the lowest cost means of transferring dry bulk solids from one point to another.
Vibratory Feeder
The vibratory feeder blades are fully adjustable for accurate & repeatable control of solids flow.
Bin Activator
Energy is imparted directly into the solids by the vibrating blades to maintain flow.
Bin Discharge Control Valve
Close tolerance blades provide positive shutoff of solids flow.
MODELS, SPECIFICATIONS & FLOW RATES
