Flexible Screw Conveyor Spirals & Tubes
All our spirals for flexible screw conveyors are manufactured in a range of mild steel and stainless steel. These are all heated treated to provide greater strength and longevity. Heavy-duty spirals are also available for certain high density or aggressive materials.
Electro-polished spirals are also available for pharma application processes.
We have various profiles of spirals in stock to suit your application. Profiles available are round, flat and beveled.
| Model (US) | Round Spiral | Flat Spiral | Beveled Spiral |
|---|---|---|---|
| 214 | Round Spiral | Flat Spiral | |
| 258 | Round SpiralHeavy Duty Available | Flat Spiral | Beveled Spiral |
| 318 | Round Spiral | Flat Spiral | Beveled Spiral |
| 412 | Round Spiral | Flat SpiralHeavy Duty Available | |
| 658 | Round Spiral | Flat Spiral | |
| 834 | Round Spiral | Flat Spiral |

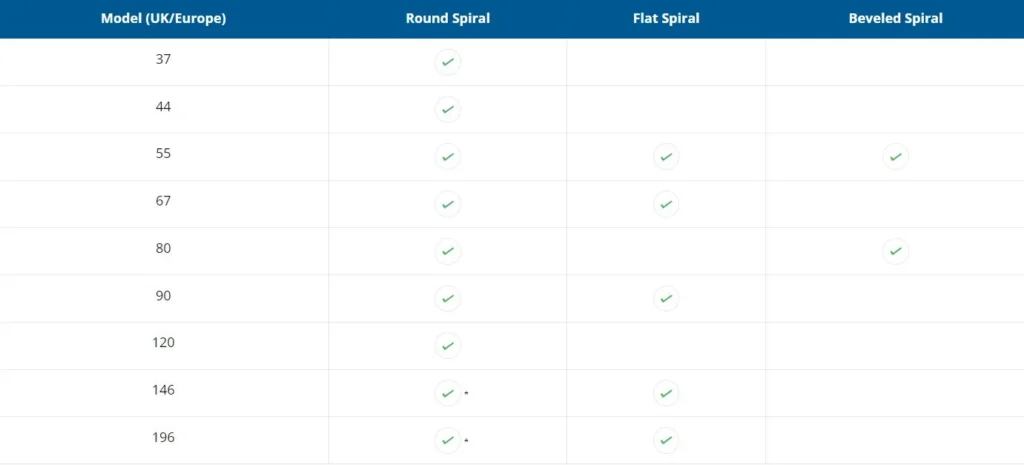

| Model (UK/Europe) | Round Spiral | Flat Spiral | Beveled Spiral |
|---|---|---|---|
| 37 | Round Spiral | ||
| 44 | Round Spiral | ||
| 55 | Round Spiral | Flat Spiral | Beveled Spiral |
| 67 | Round Spiral | Flat Spiral | |
| 80 | Round Spiral | Beveled Spiral | |
| 90 | Round Spiral | Flat Spiral | |
| 120 | Round Spiral | ||
| 146 | Round SpiralHeavy Duty Available | Flat Spiral | |
| 196 | Round SpiralHeavy Duty Available | Flat Spiral |
Our ultra-high molecular weight polyethylene (UHMWPE) food grade conveyor tubes are of the highest quality and more durable and abrasion resistant than any others on the market. We keep a large stock of these tubes in a variety of sizes.
Model (US)| Model (US) | Tube O/D (inches) | White UHMWPE Tube | Black Anti-Static Tube | Rubber Tube |
|---|---|---|---|---|
| 214 | Tube O/D (inches)2⅛" | White UHMWPE Tube | Black Anti-Static Tube | |
| 258 | Tube O/D (inches)2⅝" | White UHMWPE Tube | Black Anti-Static Tube | Rubber Tube |
| 318 | Tube O/D (inches)3⅛" | White UHMWPE Tube | Black Anti-Static Tube | Rubber Tube |
| 412 | Tube O/D (inches)4½" | White UHMWPE Tube | Black Anti-Static Tube | Rubber Tube |
| 658 | Tube O/D (inches)6¼" | White UHMWPE Tube | Black Anti-Static Tube | |
| 834 | Tube O/D (inches)8¾" | White UHMWPE Tube | Black Anti-Static Tube |
| Model (UK/Europe) | Tube O/D (mm) | White UHMWPE Tube | Black Anti-Static Tube | Rubber Tube |
|---|---|---|---|---|
| 37 | Tube O/D (inches)37 x 43 | White UHMWPE Tube | ||
| 44 | Tube O/D (inches)44 x 51 | White UHMWPE Tube | ||
| 55 | Tube O/D (inches)55 x 63 | White UHMWPE Tube | Rubber Tube | |
| 67 | Tube O/D (inches)67 x 80 | White UHMWPE Tube | Black Anti-Static Tube | Rubber Tube |
| 80 | Tube O/D (inches)80 x 90 | White UHMWPE Tube | ||
| 90 | Tube O/D (inches)90 x 100 | White UHMWPE Tube | Black Anti-Static Tube | |
| 120 | Tube O/D (inches)120 x 136 | White UHMWPE Tube | ||
| 146 | Tube O/D (inches)146 x 158 | White UHMWPE Tube | ||
| 196 | Tube O/D (inches)196 x 222 | White UHMWPE Tube |
We also offer anti-static UHMWPE tubes for explosive materials and heavy-duty abrasion resistant rubber conveying tubes suitable for the most abrasive metals, aggregates, and materials.
All our UHMWPE conveying tubes are manufactured the meet food regulations in the USA and UK.
Contact Us
Not sure what you’re looking for? Contact our helpful staff in our UK Headquarters or US Headquarters or send a photo of the part you need. Need a hand installing replacement parts? Let our engineers give a helping hand.
